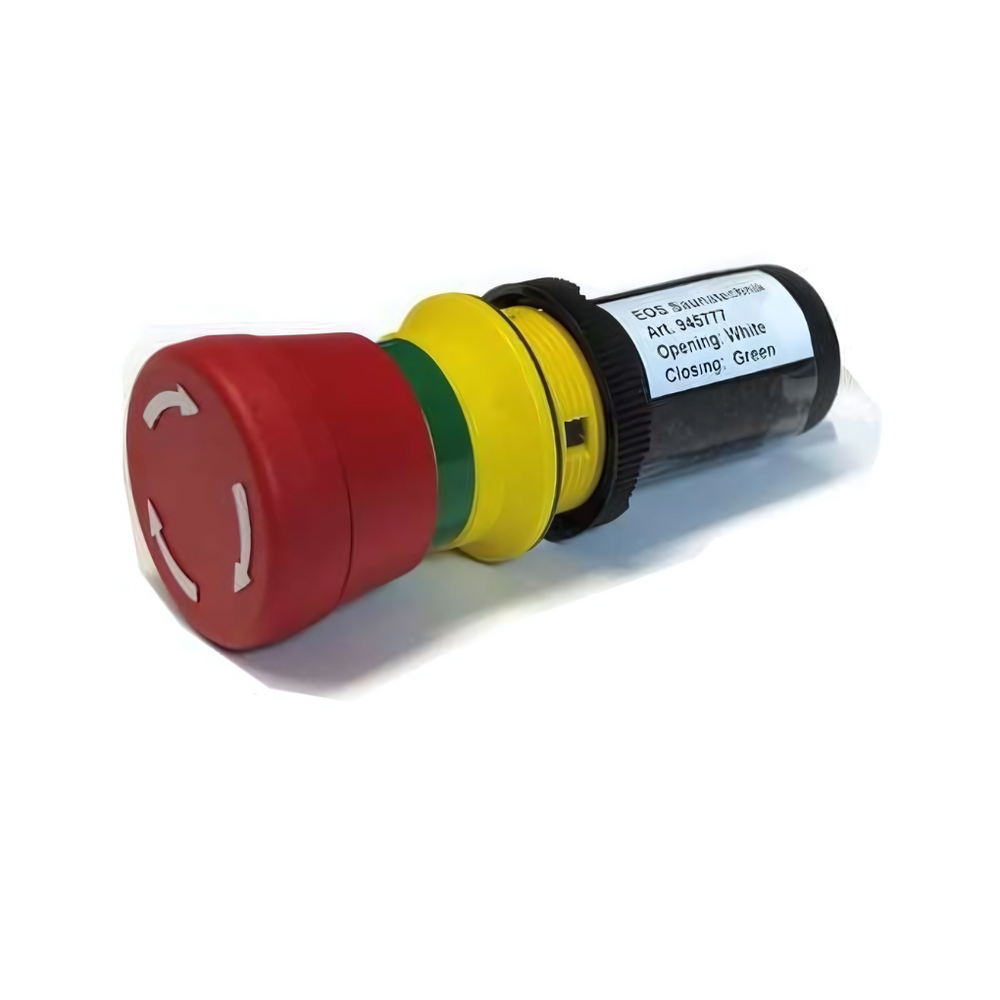

EOS Emergency Shutoff Control  14-945779

The EOS Emergency Button is an essential safety device for saunas and infrared cabins. It’s designed to instantly shut down the sauna heater in case of an emergency, offering peace of mind for both private and commercial setups. When paired with signaling equipment, it can also send an alarm to notify staff or supervisors. With its compact design and reliable performance, it's a smart addition to any sauna system.

Key Features

• Emergency shut-off function – Instantly disables heater through the overheating safety circuit
• Alarm triggering capability – Can activate alarms when connected to signaling equipment
• Dual switching contacts – One normally open and one normally closed circuit for flexible operation
• Easy installation – Long housing with screw fastening for straightforward setup
• Optional cover plate – Available with a beech wood cover plate for a clean, stylish finish

Specifications

• Model 945779  – Without cover plate
• Isolation Voltage: 250 V AC/DC
• Maximum Current: 5 A (AC), 2.5 A (DC)
• Ambient Temperature: Up to +70°C (+158°F)
• Protection Class: IP65 (visible part up to mounting point)
• Installation Depth: 85 mm (3.3 inches)
• Connection: Two contact pairs with crimped wires

*Expected to Ship in July*
